High Pressure Cell

  • High Pressure Cell
  • High Pressure Cell
  • High Pressure Cell
  • High Pressure Cell
  • High Pressure Cell
  • High Pressure Cell
  • High Pressure Cell
  • High Pressure Cell
  • High Pressure Cell
  • High Pressure Cell
  • High Pressure Cell
  • High Pressure Cell
  • High Pressure Cell
  • High Pressure Cell
  • High Pressure Cell
  • High Pressure Cell

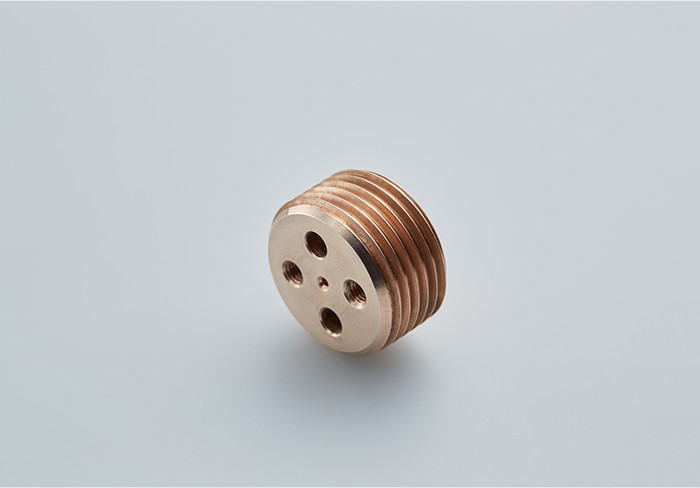

This product is a cylindrical type container for low temperature and high pressure.
The cylinder has high durability in a two-layer structure of nonmagnetic high-strength material.
It is mainly used for PPMS.

Specification

Model CTF-HHPC40 CTF-HHPC50 CTF-HHPC60
Inside diameter 4.0mm 5.0mm 6.0mm
Size of Hybrid cylinder OD25mm x L62mm OD25mm x L62mm OD25mm x L62mm
Materials of Cylinder CuBe & NiCrAl
(Non-magnetic materials)
CuBe & NiCrAl
(Non-magnetic materials)
CuBe & NiCrAl
(Non-magnetic materials)
Material of Sample tube Teflon Teflon Teflon
Components for High pressure cell Hybrid cylinder x 1 Hybrid cylinder x 1 Hybrid cylinder x 1
Upper screw x 1 Upper screw x 1 Upper screw x 1
Lower screw x 1 Lower screw x 1 Lower screw x 1
Backup plug x 1 Backup plug x 1 Backup plug x 1
Backup piston x 1 Backup piston x 1 Backup piston x 1
Piston x 1 Piston x 1 Piston x 1
Plug x 25 Plug x 25 Plug x 25
Seal rings x 50 Seal rings x 50 Seal rings x 50
Sample tube x 25 Sample tube x 25 Sample tube x 25
Pushing rod x 1 Pushing rod x 1 Pushing rod x 1
Drawning rod x 1 Drawning rod x 1 Drawning rod x 1
Pedestal x 1 Pedestal x 1 Pedestal x 1
Turn screw Jig x 1 Turn screw Jig x 1 Turn screw Jig x 1

Multi-anvil type
high temperature/pressure device

  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device
  • Multi-anvil type high pressure device

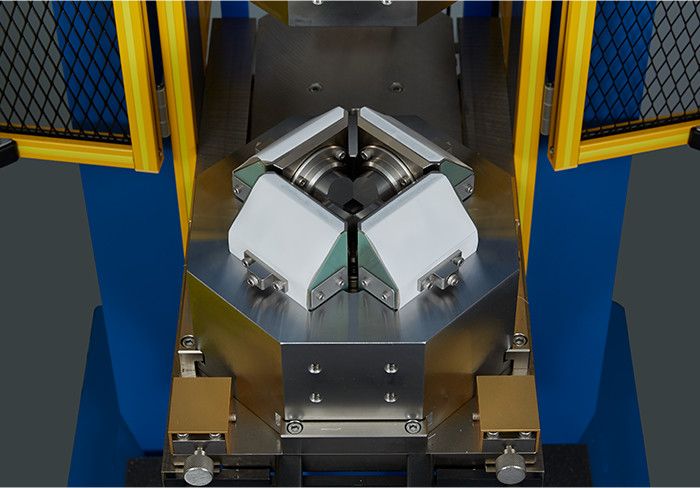

This product is able to produce high pressure in high temperature. Our clients are mainly research labs. The product is made in Japan and is made of small components and devices which require skill with high degree of precision. Our skilled craftsmen ensured its high performance. We can accommodate various requests upon requests such as Kawai type (1-1-1) or DIA type (1-0-0). We are also able to maximize the output to your needs if required. There are only several companies who can manufacture such machines like ours in the world. We will do our best to design and deliver it especifically for you.

Our clients use our products for earth and planetary science researches, material synthesizing researches in physics and chemisty and stugying structure of crystal. It can be used widely according to your requirements. It is also possible to load heat and electric current.

Specification

Model CTF-MA180P CTF-MA700P CTF-MA1500P
Max pressure power 180Ton 700Ton 1500Ton
Size of the Pressure device W600 x D600 x H1400mm W1100 x D1400 x H2400mm W1500 x D2900 x H2900mm
Weight of the Pressure device 700kg 2800kg 9000kg
Hydraulic oil pump unit Small & simple pump unit High-performance pump unit High-performance pump unit
Size of the oil pump unit W350 x D1200 x H740mm W1100 x D680 x H1000mm W110 x D700 x H1110mm
Weight of the oil pump unit 210kg 310kg 350kg
Maximum oil pressure 70MPa 70MPa 70MPa
Size of Anvil top 10mm ~ 20mm 10mm ~ 25mm 10mm ~ 50mm
Direction of the pressure 1-0-0 1-0-0 1-0-0
Size of the Heating unit W500 x D500 x H100mm W550 x D550 x H600mm W550 x D550 x H800mm
Weight of the Heating unit 30kg 110kg 160kg
Max power of the Heating unit 3kVA 3kVA or 6kVA 3kVA or 6kVA
Maximum voltage and electric current Voltage : 10V Voltage : 10V ~ 20V Voltage : 10V ~ 20V
Electric current : 300A Electric current : 300A or 600A Electric current : 300A or 600A
Methods of controls Thermocouple control or Thermocouple control or Thermocouple control or
Watt output control Watt output control Watt output control
Size of the Control panel W600 x D650 x H1350mm W600 x D650 x H1350mm W600 x D650 x H1350mm
Weight of the Control panel 100kg 100kg 100kg
